MOTORUM M2548TS /

M2558TS

CNC Servo Motor Driven Ram Turret Punch Press

M2548TS / M2558TS

Multiple Functions!, Power!, Speed!
Combined increase productivity & profitability!

MF_Eco-mark (2).gif

Process Integration

Downward extrusion up to 2mm

Forming with upward thrust

In turret bending height as high as 20mm

Increased power delivers higher processing stability

Servo motor with 250 kN punching capacity

Increased speed raises productivity

Higher auto-index speed, to 180rpm

Faster hit rate, to 400hpm

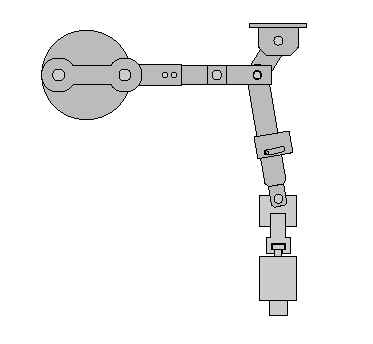

Servo Ram Drive

MURATEC introduced (1994) for the first time in punch press technology, a new concept of ram drive, which incorporates a toggle mechanism driven by a servo motor. This technology has resulted in achieving higher productivity and an eco-friendly working environment with minimum noise and hydraulic oil-less machine operation.


In Turret Bending (Option)

The Ram-Axis servo drive allows precise stop positioning of the punch, which in turn gives accurate angle control, for Z-bending via index-station processing. Increase in turret feed clearance takes the in turret bending height to a maximum of 20mm.


Forming

Optimum control of RAM speed leads to fast and accurate forming of the highest quality, with work very minimal distortion.

Retractable forming die function (Option)

Upward forming tool dies are retracted out of the way of the work sheet movements when forming is not in operation to avoid interference of forming die with workpieces or workholders. This allows free fast movement of the sheet without any restrictions and improves quality.

m2548_pic_005 (2).jpg

Forming with upward thrust (Option together with in turret bending)

Forming with thrust from below does not lift the work, allowing extrusion and other high-precision forming processes.


Downward extrusion protection (Option)

Forming with thrust from below does not lift the work, allowing extrusion and other high-precision forming processes.

m2548_pic_007 (2).jpg
